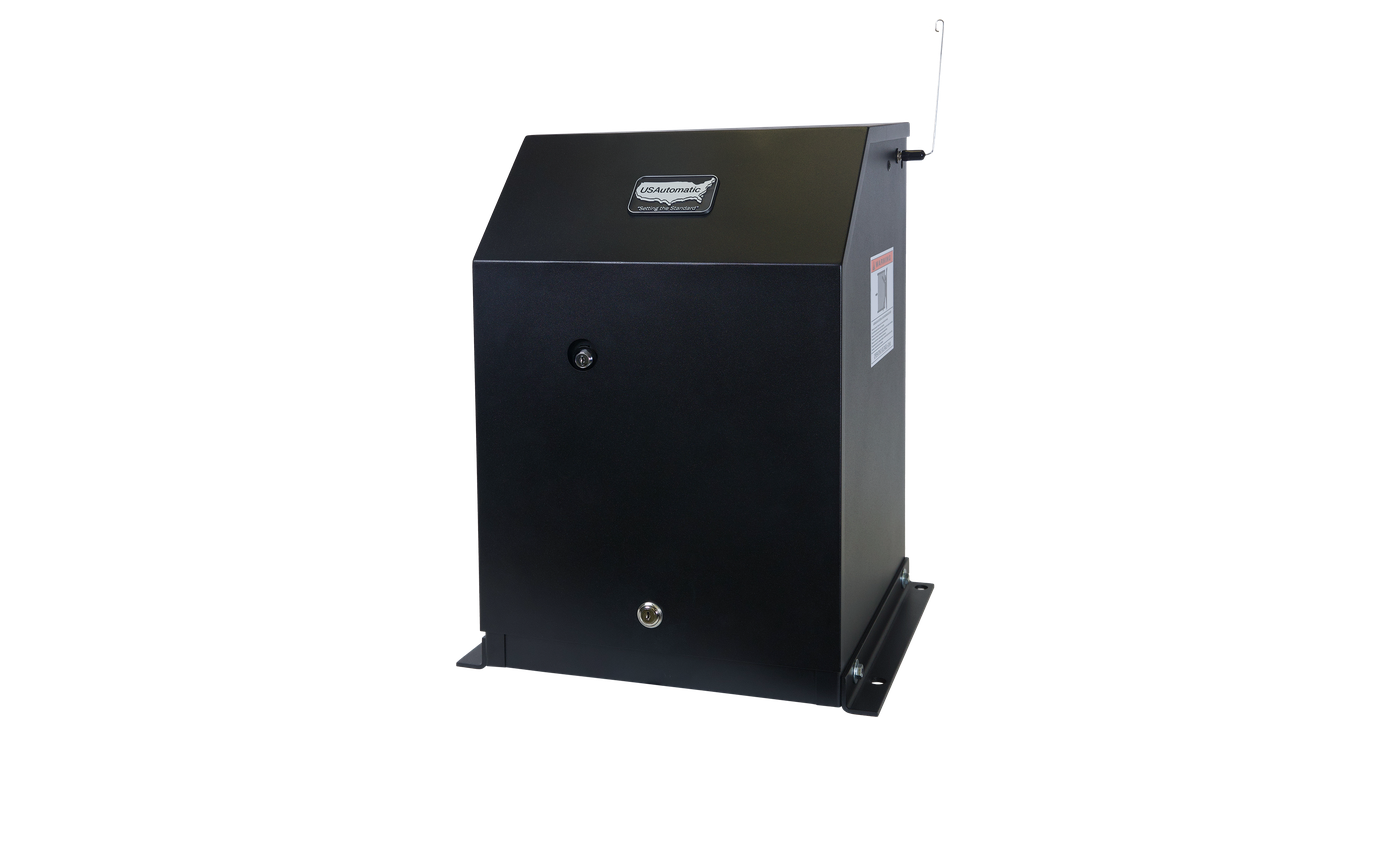

Patriot SLc Slide Gate Opener | Mechanical Controls

Designed for slide-style gates, the Patriot SLc provides the same power and reliability of the classic Patriot model.

  • The industry’s most efficient slide gate opener
  • Fast opening speed of 1 foot per second
  • Includes two sets of safety photo eyes and two premium remotes
  • Backed by a 3-year component and 5-year control board warranty
  • Capable of operating slide gates up to 32 feet in travel distance and 1000 pounds
  • Rated for up to 300 cycles per day
Find a Distributor

Specifications

Style
Slide
Gate Setup
Single
Applications
Residential and commercial
Max. Gate Width
32’ of travel distance
Max. Gate Weight
1000 lbs
Power Input
12 volt DC battery, AC or solar charged
Drive
Direct drive gearmotor with built-in brake assembly
Speed
1 ft / second
Radio Receiver
Pre-wired solar-friendly LCR dual channel receiver with built in extended range antenna
Remote Control
Two 2-button premium remotes included
Adjustable Soft/Start/Stop
Yes, using pulse width modulation software
Limit Control Type
Mechanical adjustable rotary limits
Timer to Close
Built-in, adjustable from 2 to 120 seconds
Safety Photo Eyes
2 sets included
Control Box Enclosure
14 gauge powder coated steel chassis and cover
Control Box Latch
Keyed camlock with Fire Department cable release
Purchasing Options
Solar or AC charged
Warranty
3-year for components / 5-year for control board
Manual Release
Keyed manual release operated with cover on or off
Installation

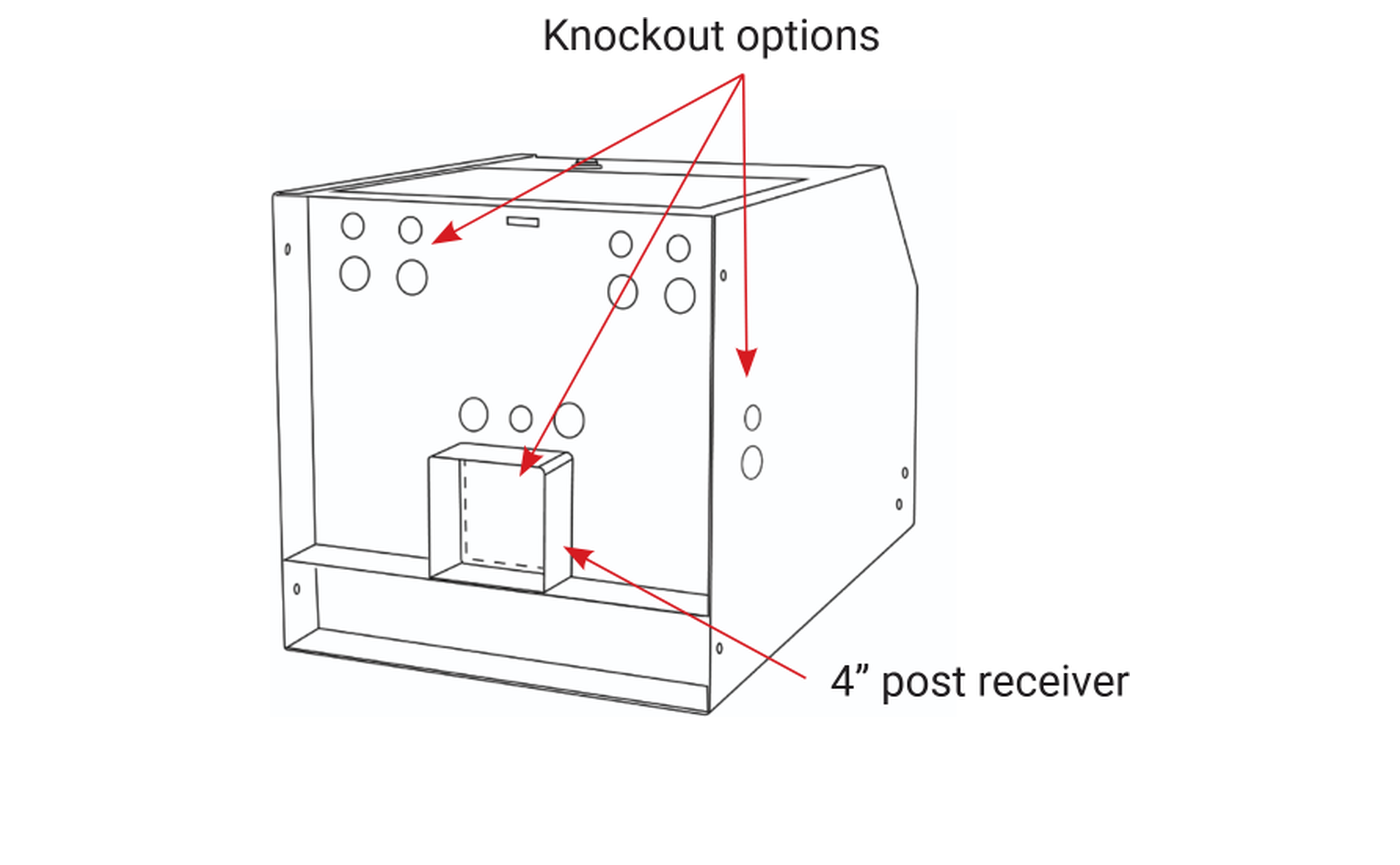

Concrete pad or 4" post mount
Safety
ETL tested and certified to meet UL 325 safety regulations for Class I, II, III and IV installations
Country of Manufacture
United States
